Description

HYPERTHERM Powermax 45 AIR PLASMA CUTTING MACHINE


GZ Industrial Supplies is a distributor of Hypertherm Powermax products in Nigeria, Our HYPERTHERM Powermax 45 AIR PLASMA CUTTING MACHINE is a handheld or mechanized plasma system for cutting or gouging metals.

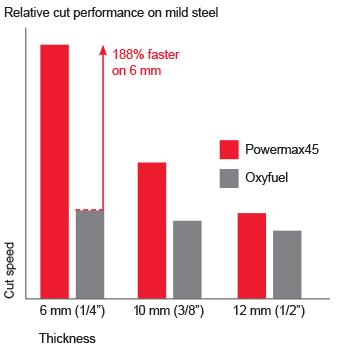

Small but powerful, the Powermax45® plasma system is the most versatile 12 mm (1/2") plasma cutting and gouging system available. The easy-to-use system is light enough to be carried anywhere on the job site – and wherever you put it to work, it outperforms every other product in its class. Patented consumables designs deliver superior cut and gouge quality with less edge preparation, and cut speeds 188% faster than oxyfuel on 1/4" mild steel.

Easy to use characteristics of Hypertherm Powermax 45 air plasma cutting machine

  • Small size and light weight offer exceptional portability for a 12 mm (1/2") rated cutting system
  • With patented drag-cutting technology and operator-friendly design, the Powermax45 is easy to use, even for first-time users

Versatile performer

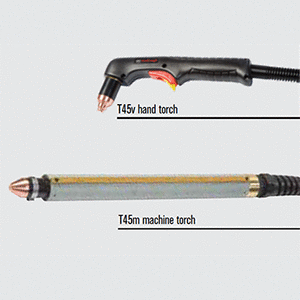

  • Allows both handheld and mechanized operation with CNC interface and FastConnect™ torch connection
  • Smart engineering and a comprehensive feature set make the Powermax45 a valuable multi-purpose tool for a wide range of applications

Rugged and reliable

  • Hypertherm Certified™ reliability ensures peak performance even in the most demanding environments
  • Powercool™ design cools internal components more effectively for longer system life and improved uptime
Input voltages
(± 10%)		 CSA 200 – 240 V, 1-PH, 50-60 Hz
480 V, 3-PH, 50-60 Hz
CE 230 V, 1-PH, 50-60 Hz
400 V, 3-PH, 50-60 Hz
Input Current @ 5.95 kW CSA 200/230 V, 1-PH, 34/28 A
480 V, 3-PH, 9 A
CE 230 V, 1-PH, 30 A
380/400 V, 3-PH, 10.5/10 A
Output current 20 - 45 A
Rated output voltage 132 VDC
Duty cycle @ 40°C (104°F) CSA 50% @ 45 A, 200 – 240 V, 1-PH
60% @ 41 A, 200 – 240 V, 1-PH
100% @ 32 A, 200 – 240 V, 1-PH
CE 50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
CE 50% @ 45 A, 380/400 V, 3-PH
60% @ 41 A, 380/400 V, 3-PH
100% @ 32 A, 380/400 V, 3-PH
Open circuit voltage (OCV) 275 VDC
Dimensions with handles 426 mm (16.75") D; 172 mm (6.75") W;
348 mm (13.7") H
Weight with 6.1 m (20') torch CSA 17 kg (37 lbs)
CE 16 kg (35 lbs)
Gas Supply Clean, dry, oil-free air or nitrogen
Recommended gas inlet
flow rate / pressure		 Cutting: 170 l/min (360 scfh; 6 scfm) @ 80 psi (5.5 bar)
Gouging: 360 scfh; 170 l/min (6 scfm) @ 60 psi (4.1 bar)
Input power cable length 3 m (10')
Power supply type Inverter - IGBT

Engine-driven generator operation

Engine drive ratingSystem output currentPerformance (arc stretch)
8 kW 45 A Full
6 kW 45 A Limited
6 kW 30 A Full



Environmental stewardship is a core value of Hypertherm. Our Powermax products are engineered to meet and exceed global environmental regulations including the RoHS directive.


CapacityThicknessCut speed


Cutting
Recommended 12 mm (1/2") 500 mm/min (20 ipm)
  19 mm (3/4") 250 mm/min (10 ipm)
Severance (hand cutting) 25 mm (1") 125 mm/min (5 ipm)
Pierce* 12 mm (1/2")

*Pierce rating for handheld use or with automatic torch height control

CapacityMetal removal rateGroove profile


Gouging
Typical gouge 2,8 kg/hr (6.2 lbs/hr) 3,3 mm D x 5,5 mm W (0.13" D x 0.22" W)

Production cut chart

MaterialThicknessCurrentMaximum cut speed *
inchesmmampsipmmm/min
Mild steel 10 GA 3 45 175 4445
1/4 6 45 75 1905
3/8 10 45 40 1016
1/2 12 45 25 635
3/4 19 45 10 254
1 25 45 5 127
Stainless steel 10GA 3 45 150 3810
1/4 6 45 55 1397
3/8 10 45 32 813
1/2 12 45 18 457
3/4 19 45 9 229
Aluminum 10 GA 3 45 280 7112
1/4 6 45 100 2540
3/8 10 45 42 1067
1/2 12 45 25 635
3/4 19 45 10 254

*Maximum cut speeds are the results of Hypertherm’s laboratory testing.  For optimum cut performance, actual cutting speeds may vary based on different cutting applications.  Refer to the operator manual for more details.

For a full torch and consumable breakdown of the handheld plasma systems please download the full catalog.
