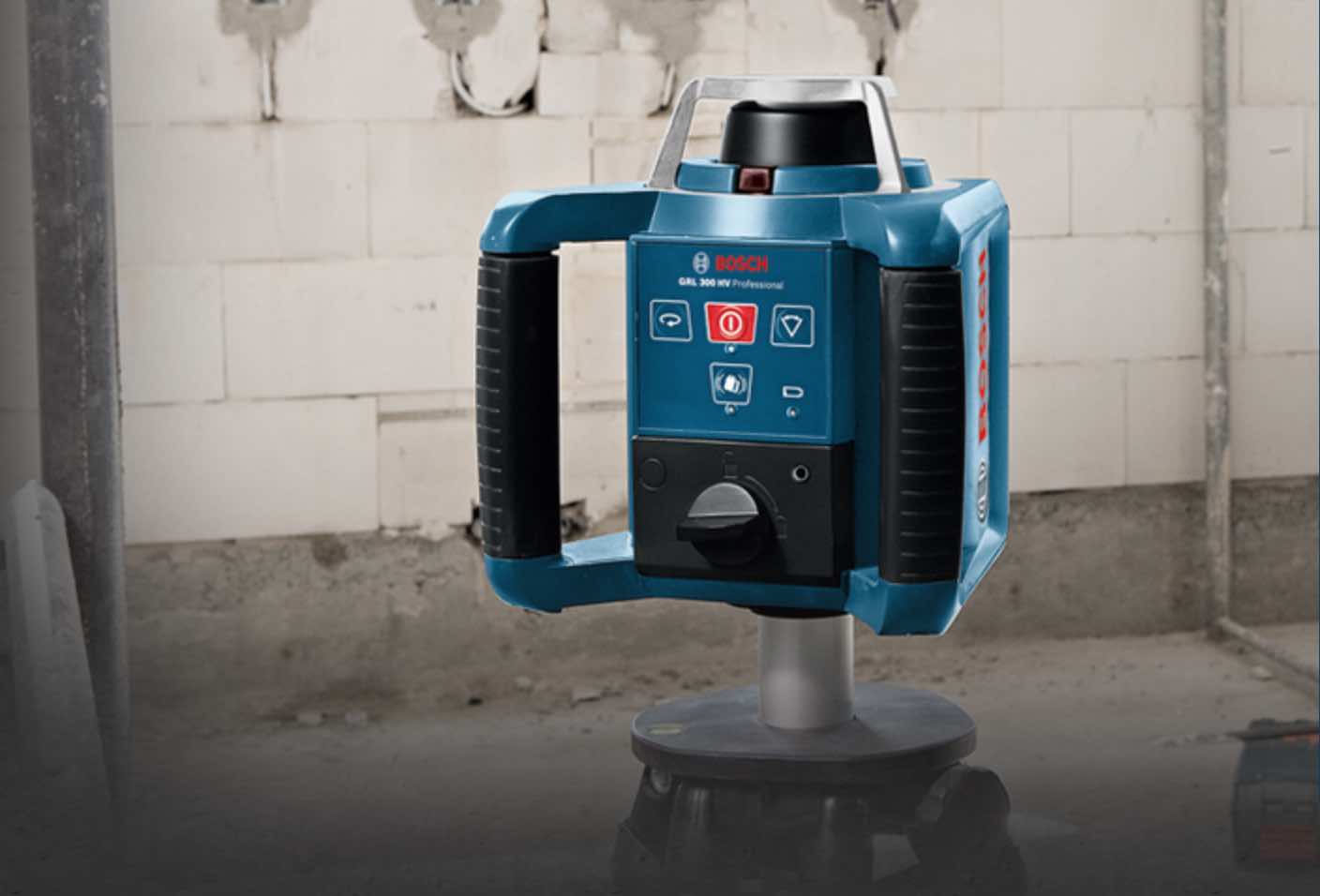

Bosch GRL 300 HVG Rotation Laser Professional

GZ industrial Supplies is a distributor of Bosch Power tools  The Bosch GRL 300 HVG Rotation Laser Professional has an outstanding visibility for indoor applications, with a green laser line: up to four times better visibility than a red line, easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°), finally the shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations

Laser diode	532 nm, < 5 mW
Operating temperature	0 – 40 °C
Storage temperature	-20 – 70 °C
Laser class	3R
Working range	100 m
Working range with receiver	300 m (Diameter)
Working range without receiver	100 m (Diameter)
Accuracy	± 0.1 mm/m
Self-levelling range	± 5° (8%)
Levelling time	15 s
Dust and splash protection	IP 54
Rotation speed	150, 300, 600 rpm
Power supply	2 x 1.2 V HR20 (D) (9 Ah) , 2 x 1.5 V LR20 (D)
Operating time (max.)	Rechargeable batteries (NiMH) 20 h
Tripod thread	5/8"
Weight, approx.	1.8 kg
Colour of laser line	green

	Battery Indicator  Battery indicator
	Self Levelling 8%  Self-levelling ± 8%
	Angle Function  Fan angle in line mode 10°/25°/50°/0°
	Working range of GRL 300 HVG  Range with receiver 300 m
	Working range of GRL 300 HVG  Working range Ø 100 m
	GRL 300 HVG  Point, line and rotation mode in vertical position
	GRL 300 HVG  Point, line and rotation mode in vertical position
	Rotation mode of GRL 300 HVG  Rotation speed 150, 300, 600 rpm

Contact us for further details and download The Bosch GRL 300 HVG Professional: User Manual (PDF 25.4 MB)
