Feeder Wagon with Two Vertical Augers SRK-14V Hozain

(No reviews yet) Write a Review
SKU:
Hozain FWTVA SRK-14V
MPN:
Hozain FWTVA SRK-14V
Weight:
5,700.00 KGS
Shipping:
Calculated at Checkout
₦0.00

Description

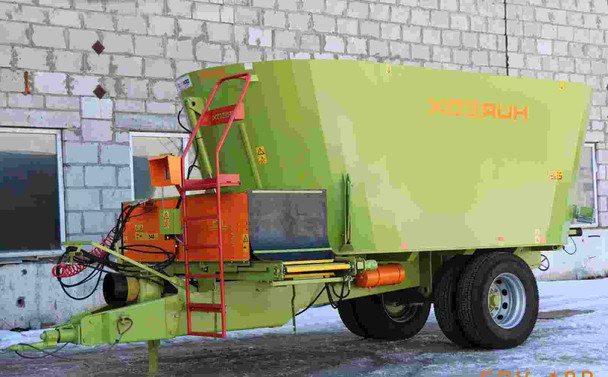

Feeder Wagon with Two Vertical Augers SRK-14V Hozain

GZ Industrial Supplies is the distributor of Hozain Agricultural Machinery in Nigeria. This Feeder Wagon with Two Vertical Augers SRK-14V Hozain is designed for regrinding, mixing and distributing a complete feed mixture to cattle in the feeders and on the feed table. A wide range of twin-screw units with cubic capacity from 12 to 21 m 3 makes it possible to choose the optimal model depending on the livestock and conditions of a particular farm.

Unique advantages of Feeder Wagon with Two Vertical Augers SRK-14V Hozain

• Minimum overall dimensions that fit into the dimensions of the MTZ-80 tractor; MTZ-82, allow the use of SRK on all standard farms without additional reconstruction;
• 2 Turbo augers with 8 knives for mixing feed components. Spiral augers 12-16mm. hot-formed from hardened steel for increased wear resistance.
• The new shape of the hopper allows to optimize the process of mixing the feed mixture and reduce the requirements for tractor power. In the model with unloading windows, their location is shifted to the side of the bunker and the width is increased for quick unloading in the direction of the auger.
• A reduction gear is included in the basic package and reduces the load on the PTO shaft and enables the tractor to work in optimal mode and allows to significantly increase the torque on the augers;
• Reliable weighing system is provided by the frame structure of the trailer. Reduced dynamic loads on weight rods when driving off-road due to their location on the frame. More accurate weighing provides an increased number of weighing rods up to 4 pieces.
• The frame structure of the trailer makes it reliable and stable when moving off-road.

The Widest Basic Configuration of Feeder Wagon with Two Vertical Augers SRK-14V Hozain

- one-piece mixing hopper;
- cardan shaft adapted to PTO MTZ;
- electronic weighing system (Italy);
- single-speed bevel planetary reducer (Italy);
- two-speed reduction gear (Italy);
- pneumatic single-circuit brake system;
- reversible unloading conveyor in front or side unloading windows;
- hand parking brake;
- frame structure with six weight rods;
- axle with paired wheels 265/70-R22.5 or 295/80-R22.5 (depending on the volume of the bunker);
- lighting devices;
- screw parking support;
- two turbo augers with 8 knives (variable position of the
cutting knives);
- two mechanical counter-knives;
- observation ladder;
- safety rope on the hitch;
- hydraulic drive system from the tractor.


Additional installation is possible:

- unloading conveyor, adjustable in height;
- unloading belt conveyor;
- sliding conveyor 250 mm;
- additional unloading window;
- universal joint shaft with friction and freewheel clutches;
- a magnetometer;
- weighing system DG600;

Contact us for further details and availability within the storefront in your location.
