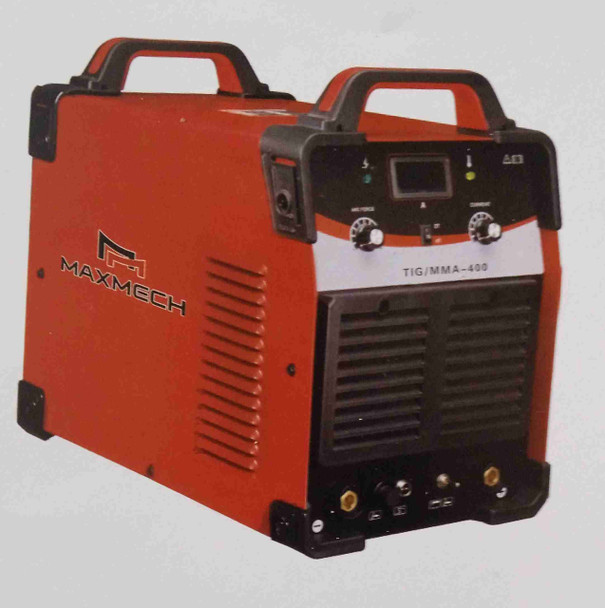

Maxmech Inverter Welding Machine TIG/MMA-400

Maxmech Inverter  Welding Machine TIG/MMA-400

GZ Industrial Supplies Nigeria is the distributor of MAXMECH INVERTER WELDING MACHINE in Nigeria. Our Maxmech Inverter  Welding Machine TIG/MMA - 400 (DC MOS INVERTER ARGON WELDING MACHINE ) is for both Argon Welding and Manual DC Welding, it also has Perfect protection features, Current anti-impact slow start function, Overcurrent and Overheating protection.

Application and Features of Maxmech Inverter  Welding Machine TIG/MMA-400

1. Pipe Installation/Construction and decoration installation/Pressure Vessel Manufacturing Using MOS SET field effect tube inverter technology , Inverter Frequency up to 100KHz or more , Mature technology, Stable Performance .
2. With the function of preset digital, the adoption of Humane ramp new designs and easy to Operate.
3. Fast Dynamic responds, Stabilized Arc, Welding  performance is Excellent , Beautiful of welding line appearance.
4. DC manual welding deep bath , little splash , with Arc force compensation function .
5. Simple structure, high -level technology , reliable and durable and easy to maintain.

Technical Specifications of Maxmech Inverter  Welding Machine TIG/MMA-400

• Rated Input Voltage (V) ------------ 3P AC380V
• Rated Input Power (KVA) ----------- 18
• Rated Input Current (A) ------------- 18.5
• Rated Output Current & Voltage ----- 380A/25.2V
• Output Current (A) -------------------  TIG: 10- 380 , MMA: 10-380
• No-load Voltage (V) ------------------ 70
• Rated Duty Cycle (%) ---------------- 60%
• Insulation Class ----------------------- F
• Net Weight (KG) ---------------------- 29.6
• Dimension (MM) ---------------------- 45*24*30

Frequently Asked Questions

1. Can I weld different types of metals with the same welding machine?

It depends on the type of welding machine. Some machines, like MIG and TIG welders, are versatile and can weld a variety of metals, including steel, stainless steel, and aluminium. However, it's important to ensure that the machine and welding process are suitable for the specific metal you intend to weld.

2. How do I determine the correct welding parameters?

The correct welding parameters, such as amperage, voltage, wire feed speed, or tungsten type, depend on factors like the type and thickness of the metal, the welding process, and the desired weld quality. Welding procedure specifications (WPS) or welding guidelines provided by the manufacturer can help determine the appropriate parameters.

3. Can I weld without using a welding machine?

Welding typically requires a welding machine to generate the necessary heat and electrical power. However, certain specialised techniques, such as forge welding or oxy-fuel welding, do not require a welding machine but have limitations and are less common in modern welding applications.
